LOE_COE Deep Dive Review

app.py

1. Create Shell Script button Triggers create_shell_script() function.

   • Displays a form with inputs for nodes, GPUs, tasks, account, mail type, email, algorithm, and utility.
     • User provides input and presses the "Create SH file" button
       • Triggers make_sh(*args):
       • Collects form inputs.
       • Constructs SLURM directives and a Python command.
       • Saves the shell script file with the specified configuration.

2. User presses the "Find buildings affected" button:

   • Note : looks Like COE
   • Triggers water_main():
     • Collects the Asset ID.
     • Calls buildings_affected_by_watermain(asset_id).
       • Displays the list of buildings affected in the Streamlit interface.
         • Connects to the buildings database i.e URI_BLGS_DB = "data/dnv_coe_buildings.db
         • Executes SQL queries to find buildings affected by the specified water main.
         • Merges the results of the queries into a single DataFrame.
         • Displays the affected buildings in the Streamlit interface.

3. User presses the "check" button:

   • Note : LOE
   • Triggers check():
   • Tests the connection to the database and displays the connection status
   • connects to URI_SQLITE_DB = "data/dnv_coe.db"(should rename to LOE)
   • Displays a success or failure message based on the connection status.

4. User presses the "check" button:

• Note : LOE

• Triggers dataset_for_surv_analysis()

  1. Database Check:

     • Connects to the SQLite database, connects to URI_SQLITE_DB = "data/dnv_coe.db"(should rename to LOE)
     • Checks if the survival table exists.

  2. Load Data:

     • If the survival table exists, loads data from the table.

  3. Process Data:

     • Cleans and processes the dataset, including handling missing values and calculating time-to-event.

  4. Merge Replacement Dates:

     • Loads replacement dates from a CSV file.
     • Merges the replacement dates with the main dataset.

  5. Calculate Duration:

     • Uses study period settings to calculate the duration for survival analysis.

  6. Save Data:

     • Writes the processed data to the survival table in the SQLite database.
     • Optionally saves the data to a CSV file if configured to do so.

5. User presses the "View Params" button:

• Note : LOE

• Triggers view_params()

  • Display Parameters:
  • Uses st.markdown() to display predefined model parameters in the Streamlit interface.

6. User presses the "Calculate Results" button:

• Note : doesn't work. LOE??

• Triggers config(args)

  • Process: Display Spinner:

    • Displays a spinner in the Streamlit interface to indicate processing.

      Load Configuration File:

    • Loads the configuration file (.toml) for the specified utility.

7. User presses the "View Results" button:

   • Triggers make_scatter(args)
   • Generate Scatter Plots:
     • Uses the make_scatter() function to generate scatter plots based on the results.
   • Display Plots:
     • Displays the generated scatter plots in the Streamlit interface.

8. User presses the "Scenario Table" button:

   • Triggers scenarios(args)
   • Get Current Run ID:
   • Retrieves the current run ID from the database.
   • If no run ID exists, initializes it to 1. Otherwise, increments the maximum run ID by 1.

   Insert New Scenario Entry:

   • Inserts a new scenario entry into the scenarios table in the database with the new run ID, status (set to 0), and parameters.

9. User presses the "View Scenario Table" button:

• Triggers view_scenarios(args)

• Connect to Database:

  • Establishes a connection to the SQLite database.

• Query Scenarios Table:

  • Executes a SQL query to fetch all entries from the scenarios table.

• Display Results:

  • Displays the last five entries from the scenarios table in the Streamlit interface.
  • If the scenarios table is not found, displays a warning message.

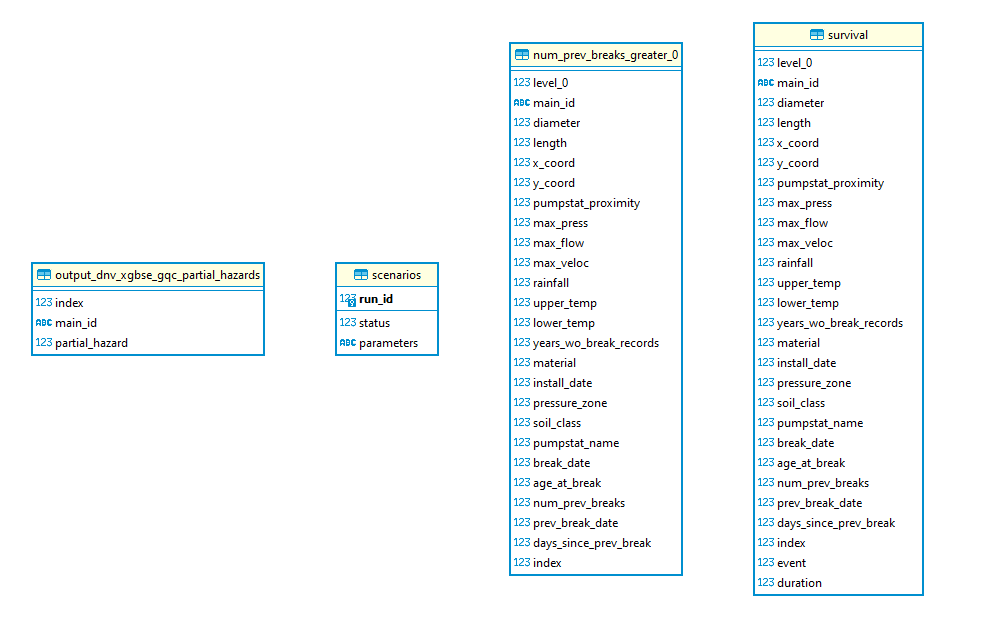

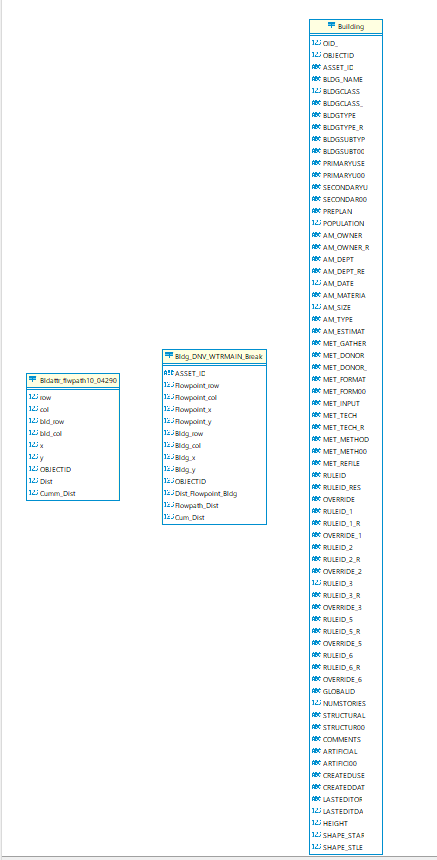

ERD Diagrams

     URI_SQLITE_DB = "data/dnv_coe_buildings.db"

Note : (should rename to LOE)

     URI_SQLITE_DB = "data/dnv_coe.db"
